항상 즐거운 마음으로 하루에 몇 번씩 들락 거리는 테드 입니다.
해박하신 분들이 많아 딱히 쓸 글도 없기에 몇 년째 눈팅만 하다

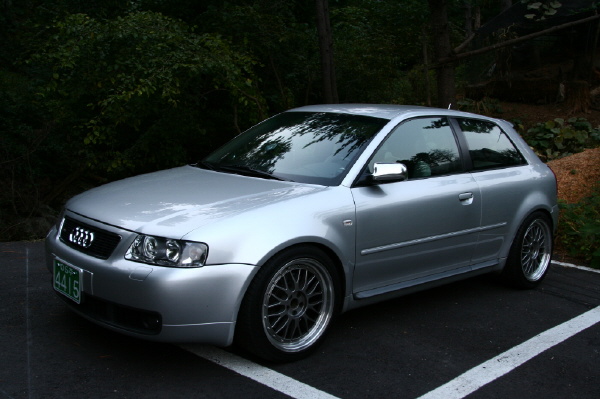

제원과 함께 사진이나마 올려 봅니다.

<General>
Model S3 Quattro
Powertrain Layout Front Engine / Full-Time 4WD

<Dimensions>
Length   4159 mm / 163.7 in
Width    1763 mm / 69.4 in
Height   1415 mm / 55.7 in
Wheelbase   2519 mm / 99.2 in
Weight   1420 kg / 3131 lbs
Front Track   1527 mm / 60.1 in
Rear Track   1503 mm / 59.2 in

<Engine>
Configuration   1.8 Liter Inline 4
Valvetrain   DOHC 5 Valves / Cylinder
Displacement   1781 cc / 108.7 cu in
Power   167.8 kW / 225.0 bhp at 5900 rpm
Torque   280.0 Nm / 206.5 ft lbs at 2200-5500 rpm
Bore   81.0 mm / 3.19 in
Stroke   86.4 mm / 3.40 in
Compression Ratio   9.0:1
Bhp / Liter   126.33 bhp

<Chassis & Body>
Body / Frame   Fully Galvanised, Unitary Steel Body w/ Aluminium Bonnet
Steering   Maintenance-Free Rack & Pinion w/ Power Assist
Brake   Type Dual Circuit Brake System w/ Vented Discs,
           Diagonal Split, Electronic Stability Program (ESP),
           Electronic Brake-Force Distribution (EBD),
           Brake Servo & ABS
Brake Size   F 312 mm / 12.3 in
                  R 256 mm / 10.1 in
Wheels   F 43.2 x 19.1 cm / 17.0 x 7.5 in
             R 43.2 x 19.1 cm / 17.0 x 7.5 in
Tyres   F 225/45R-17
           R 225/45R-17

<Transmission>
Gear Type   6 Speed Manual
Final Drive   4.20:1 (1st, 2nd, 3rd, 4th) / 3.32:1 (5th, 6th)
1st Gear Ratio   3.42:1
2nd Gear Ratio   2.11:1
3rd Gear Ratio   1.43:1
4th Gear Ratio   1.09:1
5th Gear Ratio   1.10:1
6th Gear Ratio   0.91:1

<MTM stage2 : incl. middle and rear silencer>
max. performance kW/Umin : 195/5500
max. torque Nm/Umin : 380/4500
v-max : 248 km/h (실주행 계기판 260km Over)
0-100 km/h : 5,8 s

KW Varient 2
BBS LM 18"
